100V 120A Semi-Finished Battery Pack Tester High Precision Test

Name: 100V 120A SemiFinished Battery Pack Tester High Precision Test
Brand: CHEEBO Technology
Price: 1 USD

China 100V 120A Semi-Finished Battery Pack Tester High Precision Test wholesale

Brand Name : CHEEBO Technology

Model Number : CBXPH-300

Certification : CE certification

Place of Origin : China

MOQ : 1 set

Price : NEGOTIABLE

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 50 Set/Sets per Week

Delivery Time : 5-8 work days

Packaging Details : Marine moisture-proof wooden case

Voltage range : 0-100V

Internal resistance range : 0-2000MQ

Charging current : 0-300A

Discharge current : 0-500A

Overcurrent delay time : 0-30S

Short circuit time : 0-2000uS

Contact Now

100V120A Semi-Finished Battery Pack Tester High Precision Test

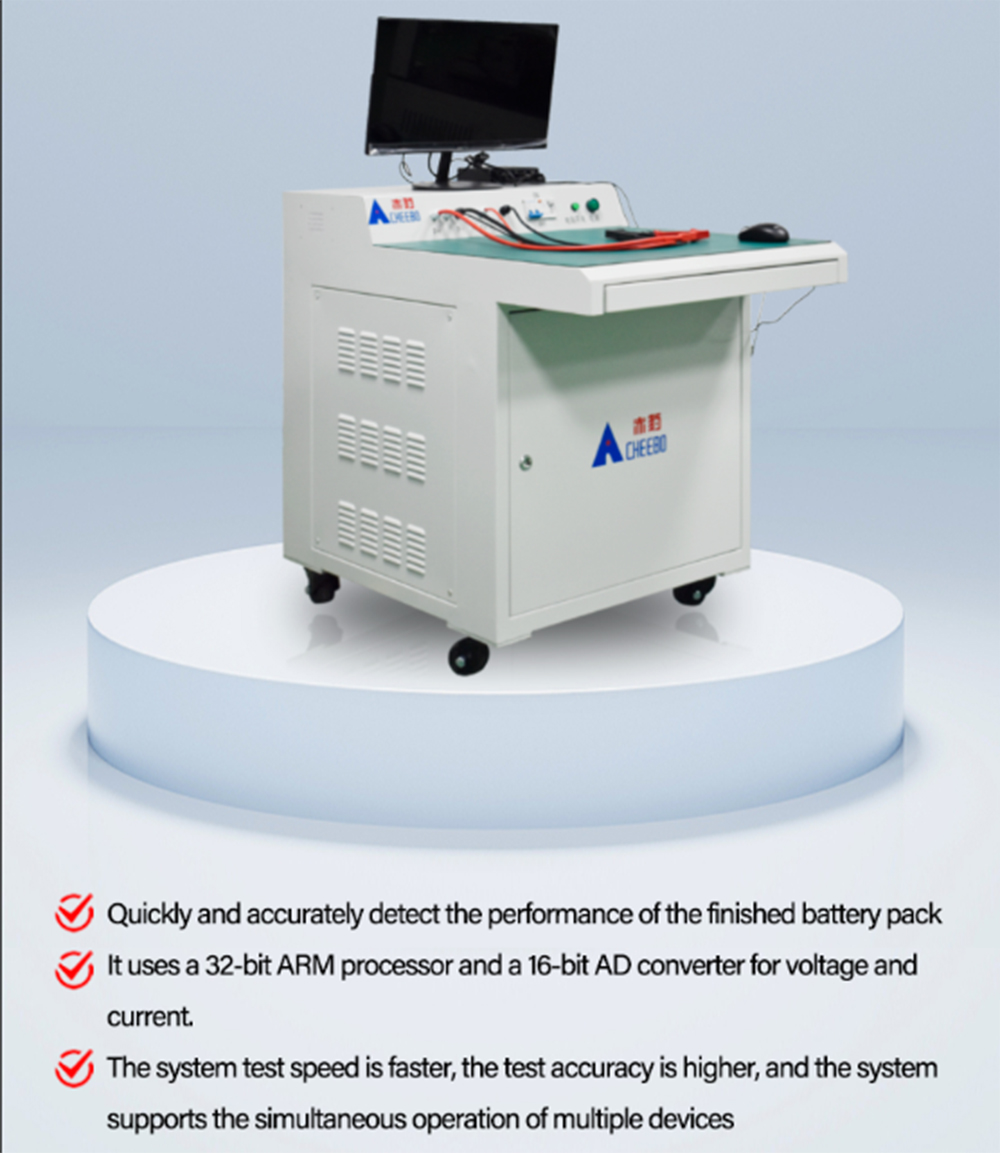

Equipment introduction

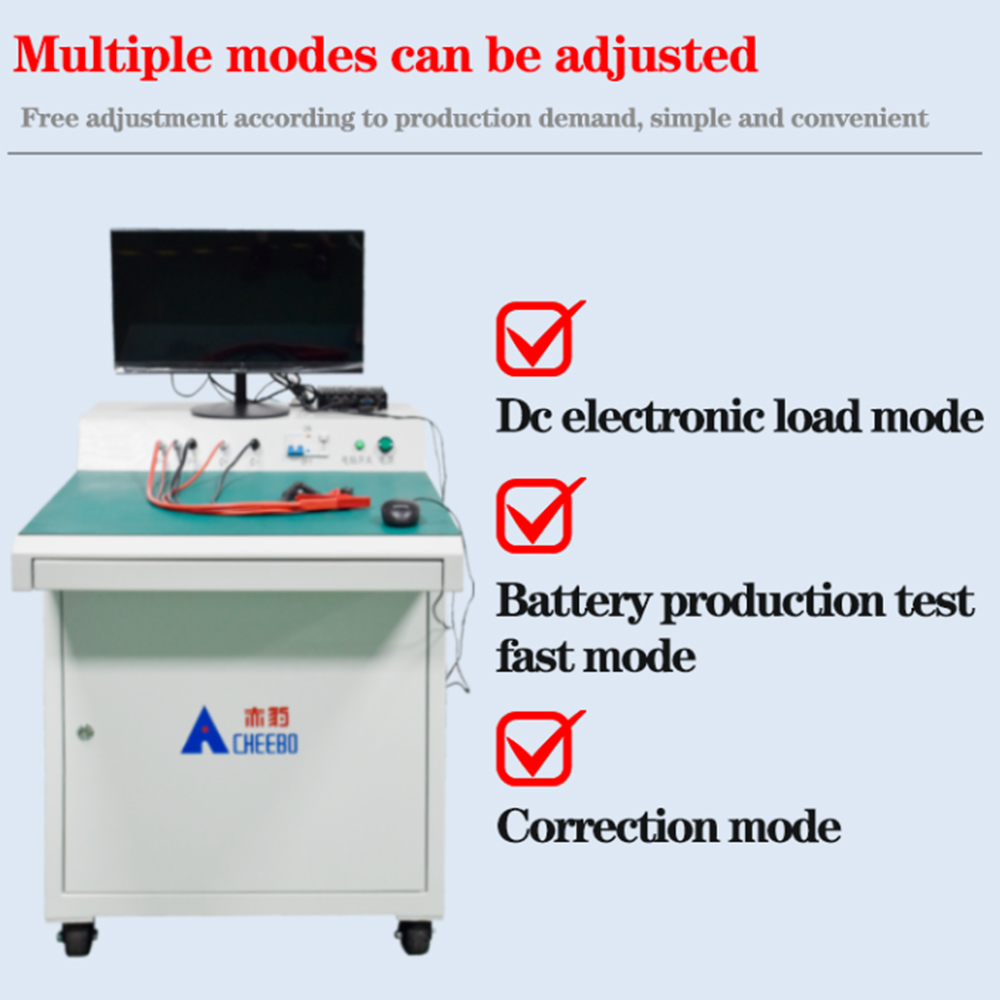

The testing instrument has two main functions, namely battery production testing mode and calibration mode. Therefore, this device can be used as an electronic load and a comprehensive testing instrument.

The specific testing items are: testing the battery open circuit voltage, battery AC internal resistance, continuous charging current, continuous charging voltage, continuous discharge current, continuous discharge voltage, charging over current protection current, discharge over current protection current, short circuit protection time, over current delay time, and voltage after testing. The device uses an infrared scanning gun bar code input (SN) to start the test or automatically starts the test when voltage is detected.

Scope of application: For lithium-ion batteries equipped with (CH+P+CH - P -), all series of power batterie

Test item

Open circuit battery voltage	Battery AC internal resistance	Continuous charging current
Overcurrent delay time	Continuous discharge voltage	Continuous discharge current
Short-circuit protection time	Discharge overcurrent protects the current
Post-test voltage	Charging current Protects the current

Technical specification

Voltage range :0-100V	Resolution :1mV	Accuracy :0.1%RD+0.1FS
Internal resistance range :0-2000MQ	Resolution :0.001MQ	Accuracy :0.1%RD+0.1FS
Charging current :0-300A	Resolution :0.001A	Accuracy :0.1%RD+0.1FS
Discharge current :0-500A	Resolution :0.001A	Accuracy :0.1%RD+0.1FS
Overcurrent delay time :0-30S	Resolution :2mS	Accuracy :0.1%RD+0.1FS
Short circuit time :0-2000uS	Resolution :1uS	Accuracy :0.1%RD+0.1FS
NTC range :0-100K	R1 range :0-100K	Equipment operating voltage :AC200V-240V
Maximum working power :5000W(maximum current charge)		Maximum working power :5000W(maximum current charge)

Device operation process description

Battery pack welding completed BMS -- comprehensive tester select the correct test template -- Connect P+/C+/P-/C -- Special crocodile clamp for testing -- Connect NTC special crocodile clamp -- Click Start test

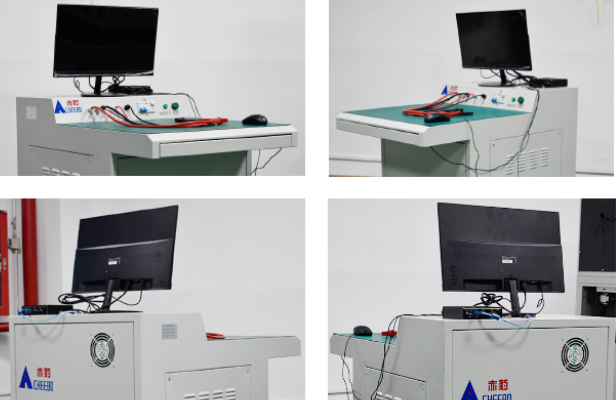

Equipment detail drawing

100V 120A Semi-Finished Battery Pack Tester High Precision Test
